Decision Tree#
Installation of Packages#
First install packages like numpy, scikit-learn, matplotlib
!pip install numpy scikit-learn matplotlib graphviz pydotplus
Requirement already satisfied: numpy in /opt/hostedtoolcache/Python/3.10.14/x64/lib/python3.10/site-packages (2.0.0)
Requirement already satisfied: scikit-learn in /opt/hostedtoolcache/Python/3.10.14/x64/lib/python3.10/site-packages (1.5.1)
Requirement already satisfied: matplotlib in /opt/hostedtoolcache/Python/3.10.14/x64/lib/python3.10/site-packages (3.9.1)
Collecting graphviz
Downloading graphviz-0.20.3-py3-none-any.whl.metadata (12 kB)
Collecting pydotplus
Downloading pydotplus-2.0.2.tar.gz (278 kB)
?25l ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 0.0/278.7 kB ? eta -:--:--
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 278.7/278.7 kB 28.8 MB/s eta 0:00:00
?25h
Preparing metadata (setup.py) ... ?25l-
done
?25hRequirement already satisfied: scipy>=1.6.0 in /opt/hostedtoolcache/Python/3.10.14/x64/lib/python3.10/site-packages (from scikit-learn) (1.14.0)
Requirement already satisfied: joblib>=1.2.0 in /opt/hostedtoolcache/Python/3.10.14/x64/lib/python3.10/site-packages (from scikit-learn) (1.4.2)
Requirement already satisfied: threadpoolctl>=3.1.0 in /opt/hostedtoolcache/Python/3.10.14/x64/lib/python3.10/site-packages (from scikit-learn) (3.5.0)
Requirement already satisfied: contourpy>=1.0.1 in /opt/hostedtoolcache/Python/3.10.14/x64/lib/python3.10/site-packages (from matplotlib) (1.2.1)
Requirement already satisfied: cycler>=0.10 in /opt/hostedtoolcache/Python/3.10.14/x64/lib/python3.10/site-packages (from matplotlib) (0.12.1)
Requirement already satisfied: fonttools>=4.22.0 in /opt/hostedtoolcache/Python/3.10.14/x64/lib/python3.10/site-packages (from matplotlib) (4.53.1)
Requirement already satisfied: kiwisolver>=1.3.1 in /opt/hostedtoolcache/Python/3.10.14/x64/lib/python3.10/site-packages (from matplotlib) (1.4.5)
Requirement already satisfied: packaging>=20.0 in /opt/hostedtoolcache/Python/3.10.14/x64/lib/python3.10/site-packages (from matplotlib) (24.1)
Requirement already satisfied: pillow>=8 in /opt/hostedtoolcache/Python/3.10.14/x64/lib/python3.10/site-packages (from matplotlib) (10.4.0)
Requirement already satisfied: pyparsing>=2.3.1 in /opt/hostedtoolcache/Python/3.10.14/x64/lib/python3.10/site-packages (from matplotlib) (3.1.2)
Requirement already satisfied: python-dateutil>=2.7 in /opt/hostedtoolcache/Python/3.10.14/x64/lib/python3.10/site-packages (from matplotlib) (2.9.0.post0)
Requirement already satisfied: six>=1.5 in /opt/hostedtoolcache/Python/3.10.14/x64/lib/python3.10/site-packages (from python-dateutil>=2.7->matplotlib) (1.16.0)
Downloading graphviz-0.20.3-py3-none-any.whl (47 kB)
?25l ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 0.0/47.1 kB ? eta -:--:--
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 47.1/47.1 kB 1.9 MB/s eta 0:00:00
?25hBuilding wheels for collected packages: pydotplus
Building wheel for pydotplus (setup.py) ... ?25l-
\
| done
?25h Created wheel for pydotplus: filename=pydotplus-2.0.2-py3-none-any.whl size=24552 sha256=1bea8112009f2eb14d9dad0ba57847fd82de7cceef026c179465c1a816e2c869
Stored in directory: /home/runner/.cache/pip/wheels/69/b2/67/08f0eef649af92df772c09f451558298e07fab1bc7cdf33db0
Successfully built pydotplus
Installing collected packages: pydotplus, graphviz
Successfully installed graphviz-0.20.3 pydotplus-2.0.2
Importation of packages#
We import the necessary packages
import numpy as np
from sklearn import datasets, metrics
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
import matplotlib.pyplot as plot
from sklearn.metrics import confusion_matrix, ConfusionMatrixDisplay
from sklearn import tree
import graphviz
import pydotplus
from IPython.display import Image, display
Load Dataset#
We load the necessary IRIS dataset.
wine = datasets.load_wine()
Description of the Dataset#
Input features#
wine.feature_names
['alcohol',
'malic_acid',
'ash',
'alcalinity_of_ash',
'magnesium',
'total_phenols',
'flavanoids',
'nonflavanoid_phenols',
'proanthocyanins',
'color_intensity',
'hue',
'od280/od315_of_diluted_wines',
'proline']
Target feature#
wine.target_names
array(['class_0', 'class_1', 'class_2'], dtype='<U7')
Verify number of records#
print(f"Number of Input Records: {len(wine.data)}")
print(f"Number of Target Records: {len(wine.target)}")
Number of Input Records: 178
Number of Target Records: 178
Visulizing the dataset#
x = wine.data
y = wine.target
plot.scatter(x[:, 0], x[:, 1], c=y, cmap=plot.cm.Set1, edgecolor="k")
plot.xlabel(wine.feature_names[0])
plot.ylabel(wine.feature_names[1])
plot.show()
plot.scatter(x[:, 2], x[:, 3], c=y, cmap=plot.cm.Set1, edgecolor="k")
plot.xlabel(wine.feature_names[2])
plot.ylabel(wine.feature_names[3])
plot.show()
fig = plot.figure(figsize=(6, 6))
ax = fig.add_subplot(projection="3d")
ax.scatter(x[:, 1], x[:, 2], x[:, 3], c=y, cmap=plot.cm.Set1, edgecolor="k")
ax.set_xlabel(wine.feature_names[1])
ax.set_ylabel(wine.feature_names[2])
ax.set_zlabel(wine.feature_names[3])
plot.show()
fig = plot.figure(figsize=(6, 6))
ax = fig.add_subplot(projection="3d")
ax.scatter(x[:, 0], x[:, 2], x[:, 3], c=y, cmap=plot.cm.Set1, edgecolor="k")
ax.set_xlabel(wine.feature_names[0])
ax.set_ylabel(wine.feature_names[2])
ax.set_zlabel(wine.feature_names[3])
plot.show()
Training#
x = wine.data
y = wine.target
x_train, x_test, y_train, y_test = train_test_split(
x, y, train_size=0.7, random_state=12, stratify=y
)
print(f"Number of Training Records (input): {len(x_train)}")
print(f"Number of Training Records (target): {len(y_train)}")
print(f"Number of Test Records (input): {len(x_test)}")
print(f"Number of Test Records (input): {len(x_test)}")
Number of Training Records (input): 124
Number of Training Records (target): 124
Number of Test Records (input): 54
Number of Test Records (input): 54
Standardization of features#
sc = StandardScaler()
sc.fit(x_train)
print(f"Mean: {sc.mean_} \nVariance={sc.var_}")
Mean: [1.30047581e+01 2.37379032e+00 2.35193548e+00 1.94088710e+01
9.95161290e+01 2.29951613e+00 2.00870968e+00 3.52903226e-01
1.58637097e+00 4.97782257e+00 9.67870968e-01 2.62653226e+00
7.34419355e+02]
Variance=[6.14365264e-01 1.36032838e+00 7.36639958e-02 1.13516149e+01
2.25798127e+02 3.83523959e-01 9.57067690e-01 1.61738293e-02
3.23856991e-01 5.47239437e+00 5.11881769e-02 4.75337168e-01
8.90159532e+04]
x_train_std = sc.transform(x_train)
x_test_std = sc.transform(x_test)
classifier = tree.DecisionTreeClassifier()
# training
classifier.fit(x_train_std, y_train)
DecisionTreeClassifier()In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.
DecisionTreeClassifier()
Classification report#
predicted_target = classifier.predict(x_test_std)
# classification report
print(metrics.classification_report(y_test, predicted_target))
precision recall f1-score support
0 0.89 0.94 0.92 18
1 0.95 0.90 0.93 21
2 0.93 0.93 0.93 15
accuracy 0.93 54
macro avg 0.93 0.93 0.93 54
weighted avg 0.93 0.93 0.93 54
Confusion matrix#
cm = confusion_matrix(y_test, predicted_target, normalize="pred")
disp = ConfusionMatrixDisplay(confusion_matrix=cm, display_labels=wine.target_names)
disp.plot(cmap=plot.cm.Blues)
<sklearn.metrics._plot.confusion_matrix.ConfusionMatrixDisplay at 0x7f3544452bf0>

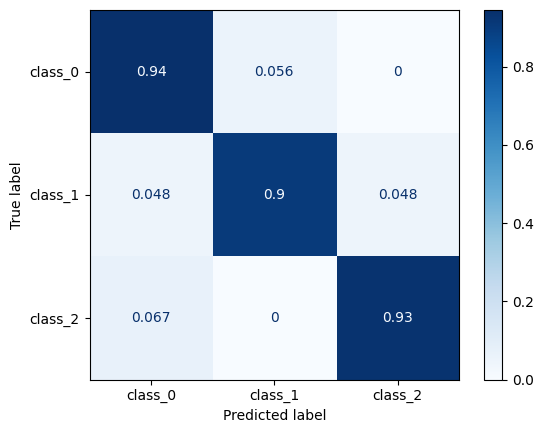

cm = confusion_matrix(y_test, predicted_target, normalize="true")
disp = ConfusionMatrixDisplay(confusion_matrix=cm, display_labels=wine.target_names)
disp.plot(cmap=plot.cm.Blues)
<sklearn.metrics._plot.confusion_matrix.ConfusionMatrixDisplay at 0x7f3544333550>
Visualization of Decision tree#
dot_data = tree.export_graphviz(
classifier,
out_file=None,
feature_names=wine.feature_names,
filled=True,
rounded=True,
class_names=wine.target_names,
)
graph = graphviz.Source(dot_data)
pydot_graph = pydotplus.graph_from_dot_data(dot_data)
img = Image(pydot_graph.create_png())
display(img)
---------------------------------------------------------------------------
